Output range 0.74 – 32 l/h, 16 – 2 bar. This metering pump is convincing not only in terms of its versatility and reliability but also by the ideal price/performance ratio this allrounder offers. Manual operation and external contact activation with continuous stroke length adjustment. Connection for 2-stage level switch

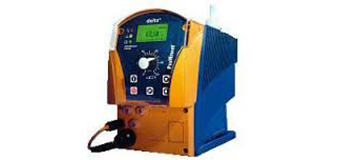

Output range 7.5 – 75 l/h, 16 – 2 bar. Series with optoDrive technology for highly effective adaptation to the metering task and moni-deltatoring of hydraulic periphery. Optional continuous or pulsating metering Integrated hydraulic monitoring functions Manual operation, external contact and analogue activation Continuous stroke length adjustment. Connection for 2 stage level switch. Large backlit graphic display. Optional interfaces for PROFIBUS or CAN-bus. Optional 14 day process timer for time and event-dependent metering tasks.

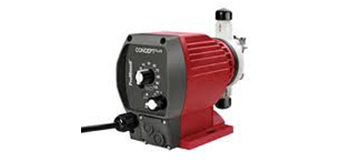

Concept metering pumps are for basic watertreatment applications.3 switchable speeds, capacities to 13l/h
Output range 0.5 – 21.5 l/h, 10 – 4 bar. This metering pump is intended for simple applications. The pump is ideal for tasks involving continuous metering. Activation is via power ON/OFF, stroke length adjustment is in steps of 10%
Capicity range 8 – 64 l/h, 10 – 4 bar. This metering pump is particularly suitable for use in applications requiring continuous metering. It is designed for simple metering tasks.The VarioC is the basic model and does not feature integrated electronics. The drive motor is optionally available as a 3-phase 230/400V, 50/60Hz, 1-phase 230V, 50Hz or 1-phase 115V 60Hz motor. With the PVDF or stainless steel liquid end, virtually universal resistance to chemicals is ensured in a di-verse range of applications.

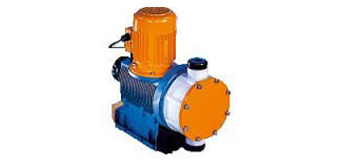

Capicity range 145 – 1030 l/h, 12 – 4 bar. With an output of up to 1.030l/h, this metering pump is the high performance model of the Sigma series. All Sigma pumps are available in the basic version and in a microprocessor version. The basic version is suitable for continuous metering tasks or for use in explosion hazard areas. The control version offers many control and signalling options such as contact activation, analogue control, DP interface, PROFIBUS diaphragm failure signalling etc. The vast variety of options is spedified in the identcode.
